STRATA

Part of the Tecnica Design collection, this modern lever is ideal for residential and light-duty office applications. Available with spring or magnetic tubular latches.

Features

  • 20 minute fire-rating available with listed fire-can*
  • Meets ADA requirements
  • For doors 13⁄8 to 13⁄4″ (35 to 44.5 mm) thick
  • Kit for doors 21⁄4″ (57 mm) thick available
  • Non-handed
  • Adjustable 23⁄8″ or 23⁄4″ (60 or 70 mm) backset
  • Stainless steel spring latch, available Drive-In or Universal
  • Privacy function with auto-release
  • Dummy includes surface and thru-bolt mounting hardware
  • Concealed mounting screws
  • Full lip strike with 1⁄4″ (6.4 mm) radius corners
  • Strike available for hollow metal frames

(*) Fire-can must be ordered in conjunction with lockset.

MAGNETIC LATCHES

MAGNETIC LATCHES

Functions

10Passage
42Privacy

-5Dummy

FINISHES

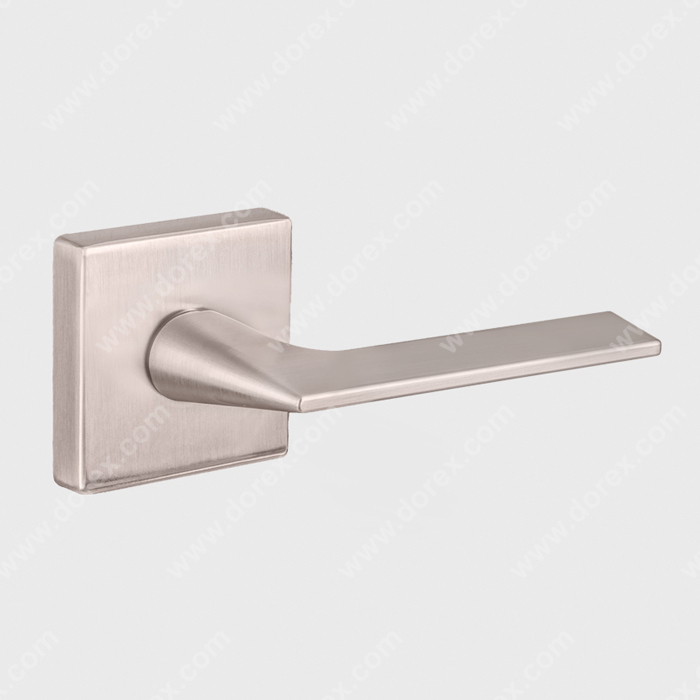

  15 SATIN NICKEL

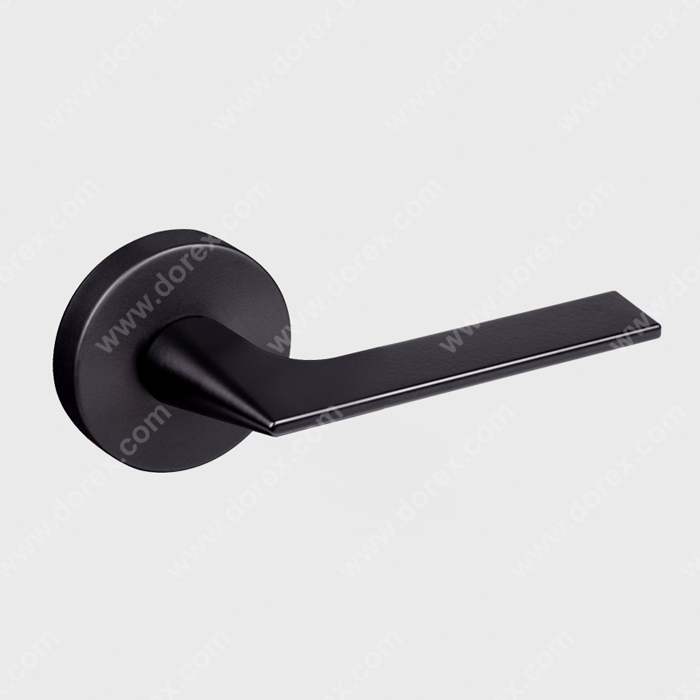

 19 MATTE BLACK

  26D SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only
