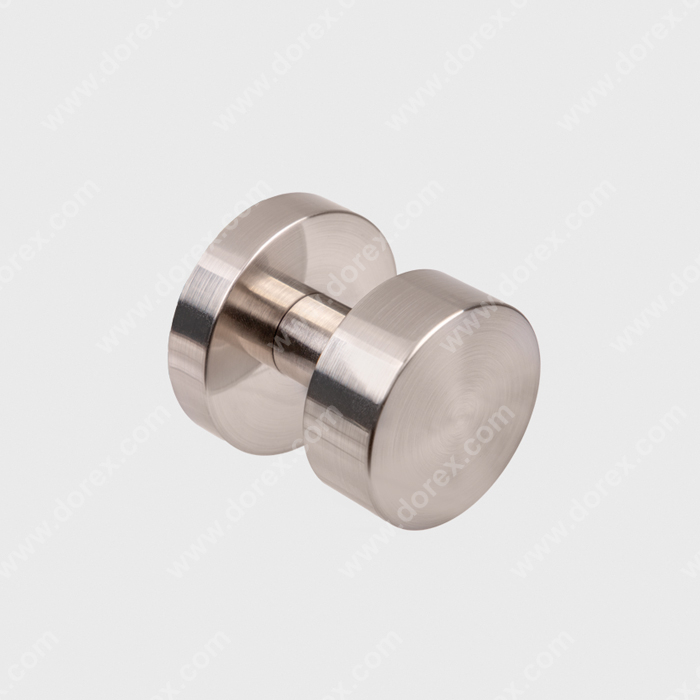

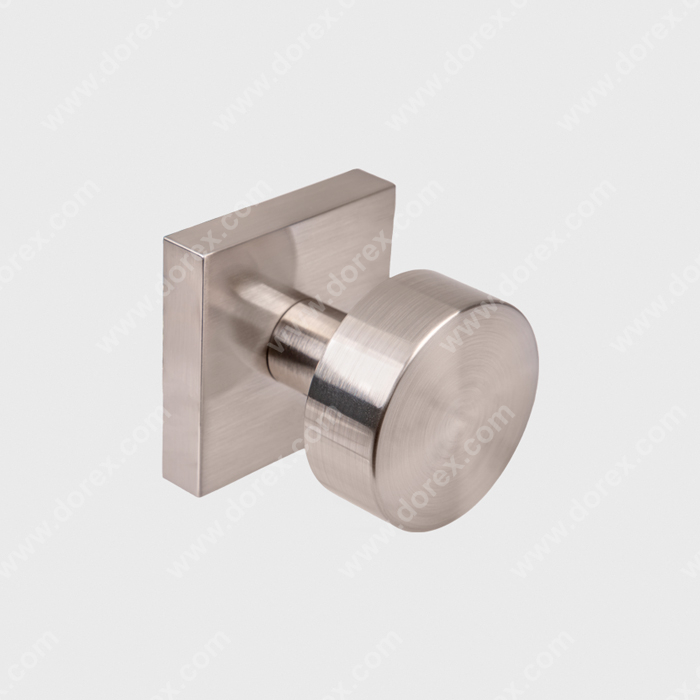

GEMINI

Mid-century inspired, contemporary door knobs that can accommodate nearly any modern decor.

FEATURES

  • 1 year mechanical warranty
  • 1 year limited finish warranty
  • Non-handed, zinc die-cast knob
  • For doors 13⁄8 to 13⁄4″ (35 to 44.5 mm) thick
  • Fits standard 21⁄8″ (54 mm) door preparation with 1″ (25.4 mm) edge bore
  • Steel tubular spring latch with adjustable 23⁄8″ or 23⁄4″ (60–70 mm) backset
  • 4-Way, mortise faceplate with square corners, convertible to drive-in
  • Entry model includes 5-pin cylinder, Weiser keyway with 2 keys
  • Full-lip strike with round corners included
  • Other faceplate options available

MAGNETIC LATCHES

MAGNETIC LATCHES

Functions

10Passage
42Privacy, with auto-release
51Entry keyed function
17Single Dummy (surface)

FINISHES

  15 SATIN NICKEL

  C19 MATTE BLACK

Other finishes available
Approximate finish simulation, for reference only

Documentation

Product Page
downloadMetro Collection – 01.240
downloadMetro (Knobs) – 01.244

Instructions

downloadMetro Series – Installation Instructions
downloadMetro Series Dummy – Installation Instructions

Templates

downloadMetro Series – Template

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
