DM SERIES
GRADE 1

The DOREX DM is a premium, heavy-duty, mortise lock that is available in a wide variety of trim and handle styles. Ideal for commercial or residential applications with high traffic and/or enhanced security requirements.



FEATURES

  • Conforms to ANSI/BHMA A156.13, Series 1000, Grade 1
  • cULus listed, 3 hr fire rating
  • UL10C Positive Pressure Rated
  • ADA Compliant levers
  • 5-Year limited warranty
  • For doors 13⁄4 –21⁄4″ (45 – 57 mm) thick*
  • Handed, field reversible
  • 23⁄4″ (70 mm) backset
  • Faceplate adjusts for bevelled doors
  • Brass, 2 piece latchbolt with 3⁄4″ (19 mm) throw
  • Deadbolt functions include brass deadbolt with two security pins; 1″ (25.4 mm) throw
  • Adjustable faceplate for bevelled doors
  • Single action egress
  • Square or round rose trim available
  • Three (3) escutcheon sizes available
  • Contemporary lever and knob styles available
  • Strike and dust box
  • Keyed functions include 6-pin mortise cylinder, Schlage “C” keyway with 2 keys
  • Small format interchangeable core (SFIC) mortise cylinder available (SFIC sold separately)

Full keying services available. Other common and high security keyways available.
(*) Kit required for thicknesses greater than 2″ (51 mm)

FUNCTIONS

10Passage
42Privacy
45Entrance keyed function
50Office keyed function
56Dormitory keyed function
70Classroom keyed function
80Storeroom keyed function
84Storeroom with deadbolt keyed function
171Single dummy
172Back-to-Back dummy (Double dummy)

FINISHES

  C15 SATIN NICKEL

  26D SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only

LEVER / KNOB STYLES

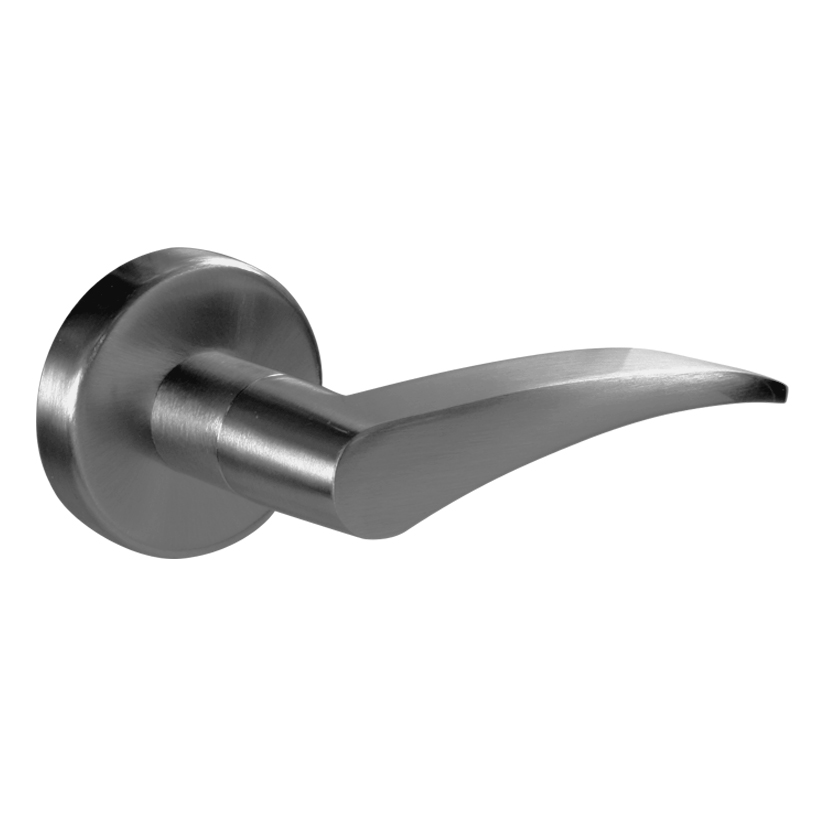

APOLLOApollo Lever

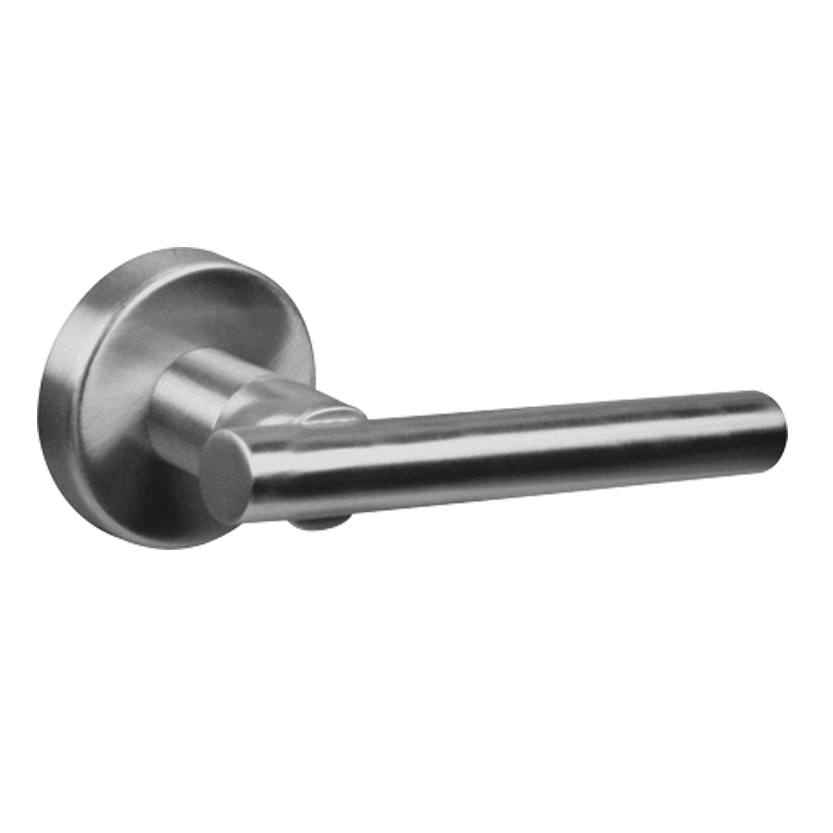

CIRCACirca Lever

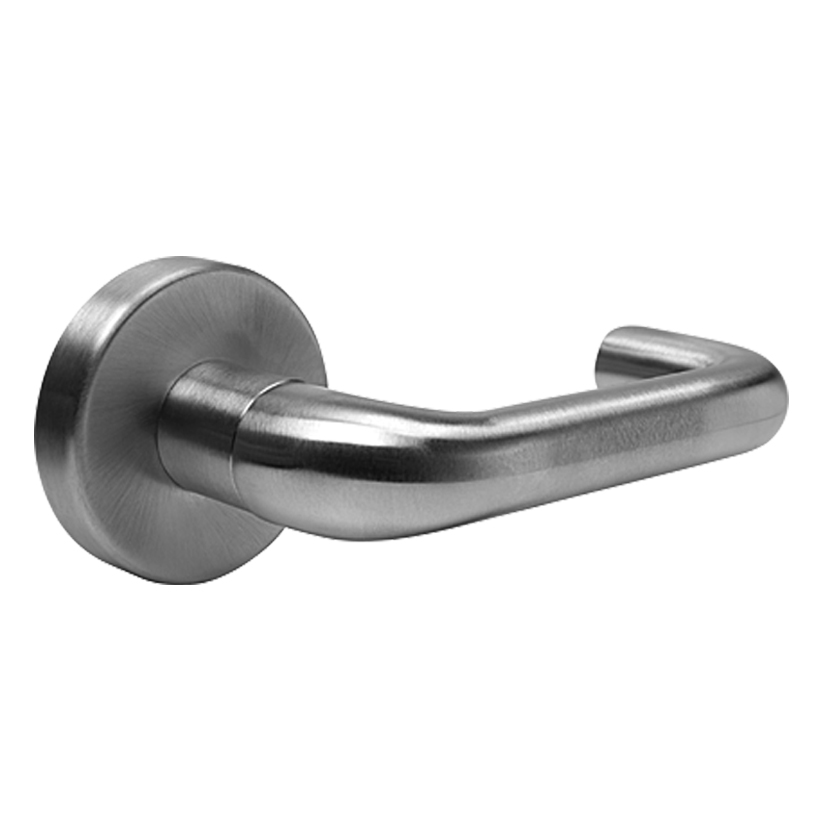

CORNELLCornell Lever

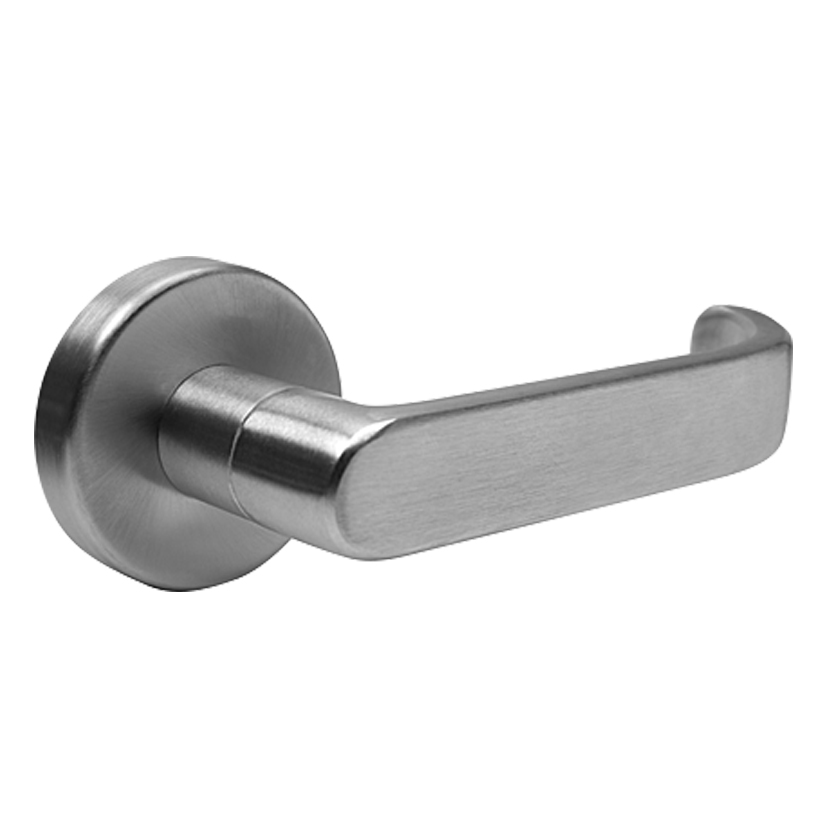

DARTMOUTHDartmouth Lever

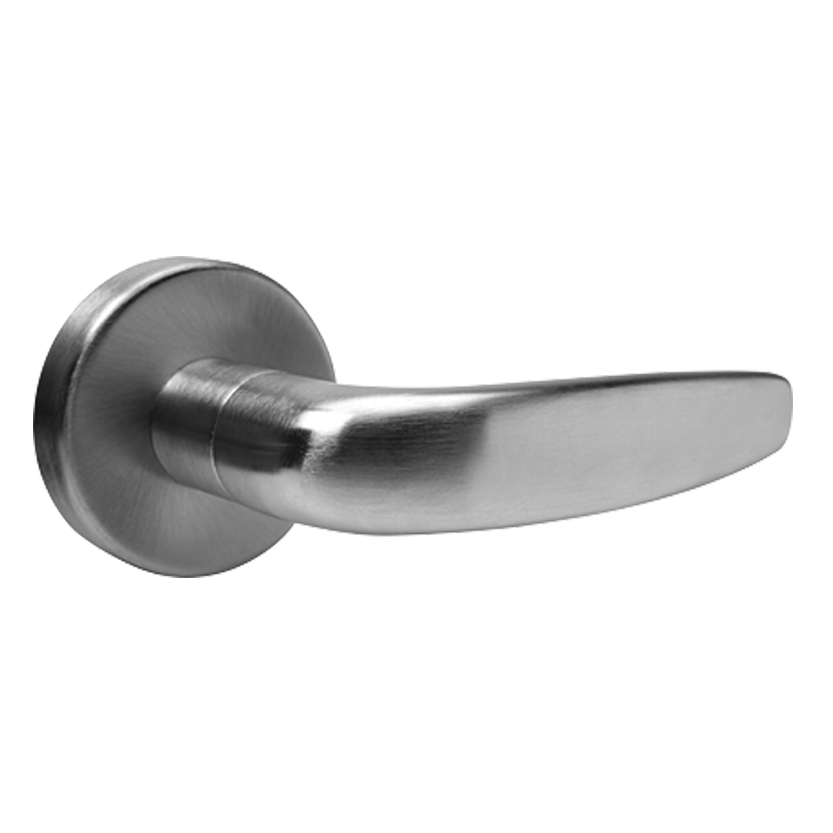

GLASGOWGlasgow

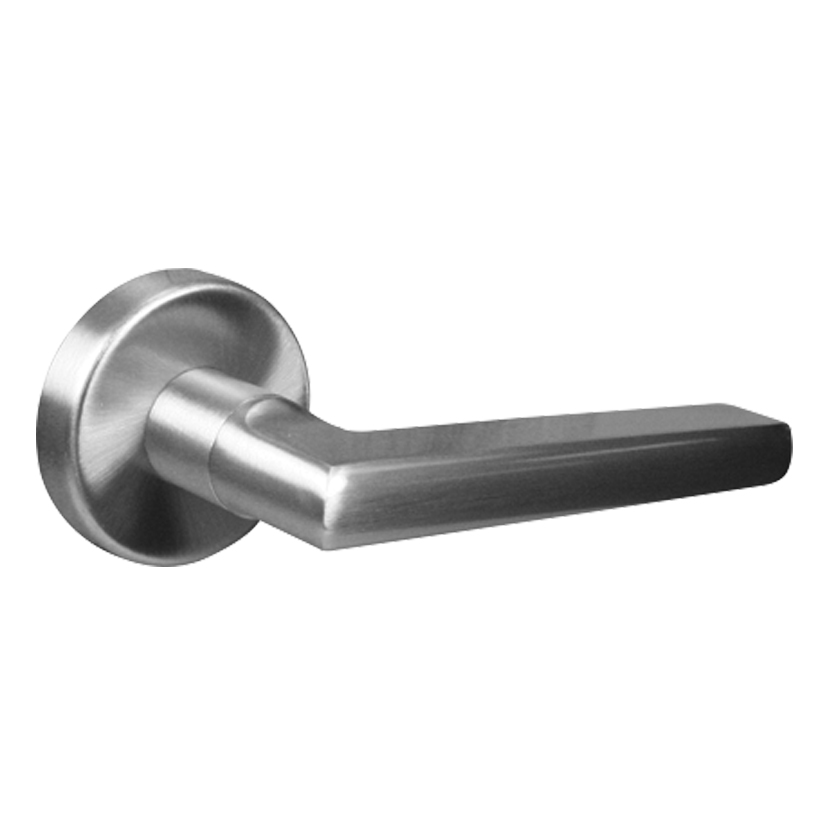

LINEALinea Lever

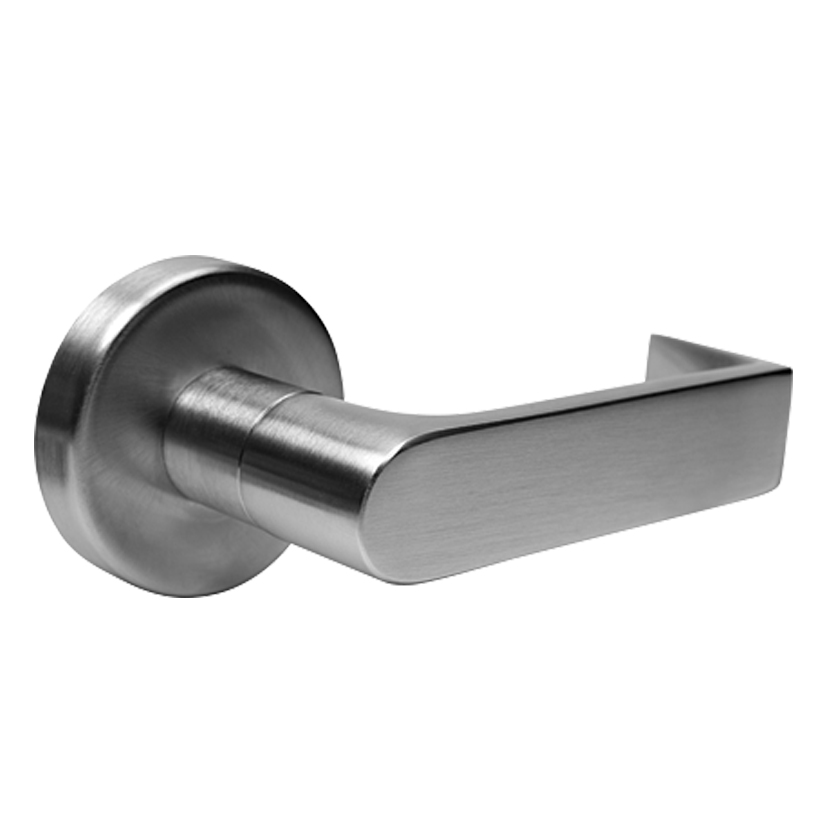

STANFORDStanford Lever

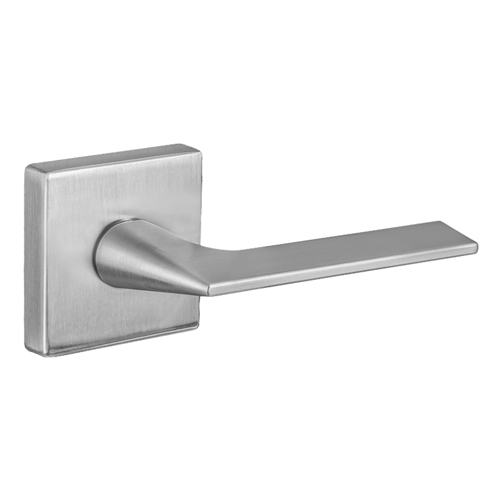

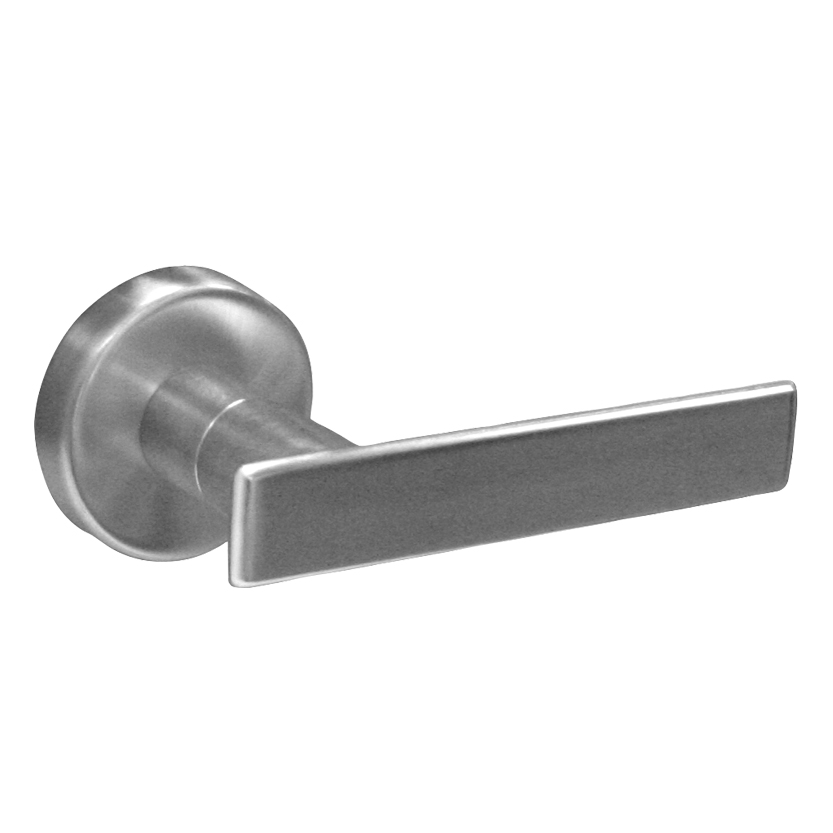

THE FLATThe Flat Lever
KENTKent Knob

TRIM OPTIONS

SQUARE ROSESquare Sectional Rose
ROUND ROSERound Sectional Rose
REGULAR ESCUTCHEON (E)Regular Escutcheon Trim
WIDE ESCUTCHEON (E2)Wide Escutcheon Trim
LARGE ESCUTCHEON (E3)Large Escutcheon Trim

DOCUMENTATION

Product Page

downloadDM Series 01.070

Installation Instructions

downloadDM Series Installation Instructions
downloadDM 171S – Single Dummy (Thru Bolt)
downloadDM 171S – Single Dummy (Surface)
downloadDM 172S – Back-to-back Dummy
downloadDM 172E – Back-to-back Escutcheon Dummy
downloadDM PPRVI-ECYL – Indicator with cylinder
downloadDM PPRVI – Indicator no cylinder

Templates & Door Preparations

downloadDM Series – Template
downloadDM Series – Wood Door Preparation
downloadDM Series – Metal Door Preparation
downloadDM 171S/172S Dummy – Template
downloadDM 171E/172E Dummy – Template
downloadDM 171S-SM – Template
downloadDM PPRVI-ECYL – Indicator with cylinder – Template
downloadDM PPRVI – Indicator no cylinder – Template
