T2 SERIES
GRADE 2

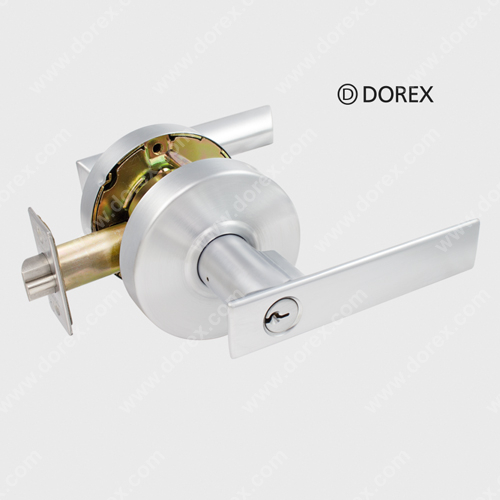

The DOREX T2F cylindrical door lock offers durable construction with architectural style in one package. Featuring The Flat lever from the Tecnica Design collection, it is ideal for moderate traffic applications.



FEATURES

  • Conforms to ANSI/BHMA A156.2, series 4000, Grade 2
  • cULus listed, 3 hr fire rating
  • Meets ADA requirements
  • 1 Year limited warranty
  • For doors 13⁄8 – 2″ (35 – 51 mm) thick
  • Non-handed
  • 23⁄4″ (70 mm) backset
  • 23⁄8″, 33⁄4″ and 5″ (60 mm, 95 mm and 127 mm) backsets available
  • Stainless steel latch with 1⁄2″ (12.7 mm) throw
  • Removable security posts
  • Featuring “The Flat (D)” lever style
  • 35⁄16″(84.5 mm) rose diameter
  • Concealed mounting plate and screws
  • ASA strike
  • Keyed functions include 6-pin cylinder, Schlage “C” keyway with 2 keys

Full keying services available. Other common and high security keyways available.

FUNCTIONS

00Dummy, single
10Passage
40Privacy
53Entrance keyed function
70Classroom keyed function
80Storeroom keyed function

FINISHES

  15 SATIN NICKEL

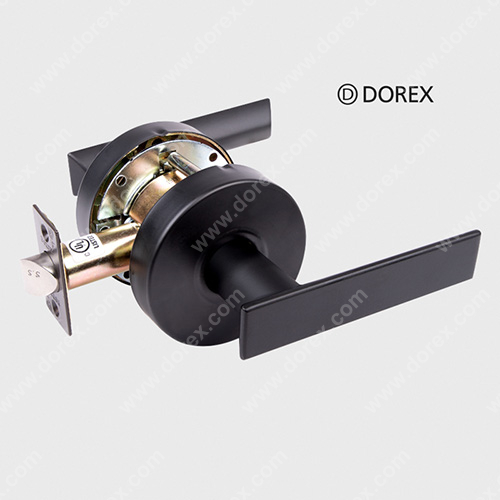

  19 MATTE BLACK

  26D SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

T2 Series 01.021

Installation instruction

T2 – Installation Instructions
T2-EV79-00 – Installation Instructions (Dummy)

Templates & Door Preparations

downloadT2 ANSI-A156W Wood Door Preparation
downloadT2 ANSI-A156 Door Preparation

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
