NH900 SERIES
GRADE 2

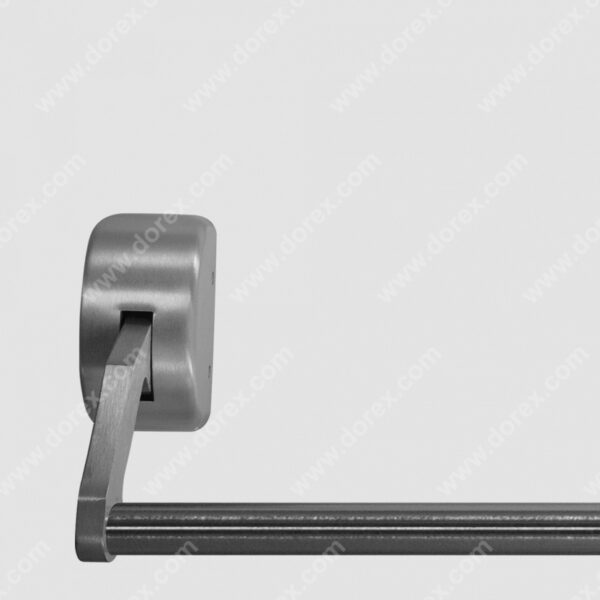

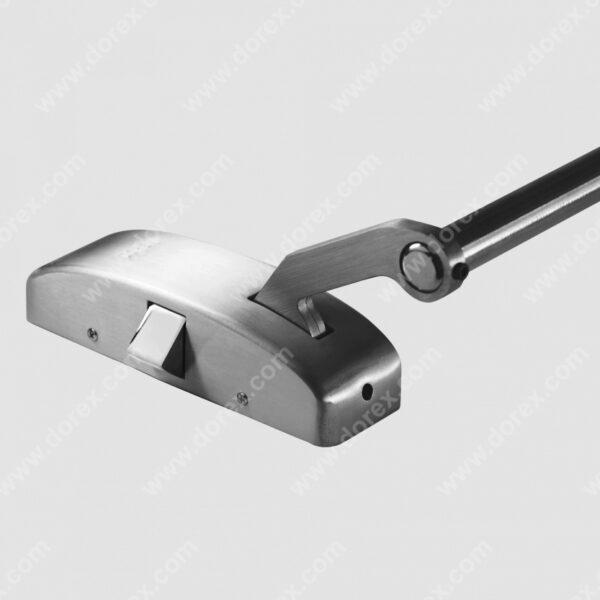

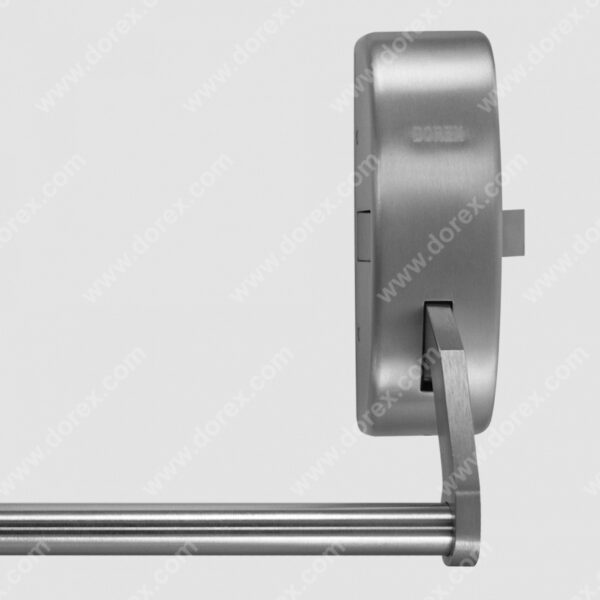

The Dorex NH900 exit device offers a traditional crossbar design and is available with a variety of exterior trim options. This crossbar exit device is ideal for use on wood or hollow metal doors in moderate traffic applications.



FEATURES

  • Conforms to ANSI/BHMA A156.3, Grade 2
  • cUL listed, Panic Hardware
  • 1-Year warranty
  • For wood or hollow metal doors
  • Crossbar type:
    » Rim model (handed, reversible)
  • Field sizable 38″ (965 mm) cross bar included
    » 48″ (1219 mm) crossbar available, sold separately
  • Brass latchbolt, 3/4″ (19 mm) throw
  • Stainless steel springs
  • Hex key dogging
  • Some models include exterior escutcheon trim
  • Keyed models require a rim cylinder, sold separately

MODELS

NH900-1Panic crossbar exit device only, no trim
NH900-3Panic crossbar exit device, thumb-latch trim, latch always free (passage)
NH900-4Panic crossbar exit device, key activate, latch always locked (night latch) keyed function
NH900-5Panic crossbar exit device, thumb-latch trim, latch unlocked by key (entry) keyed function

Keyed functions require rim cylinder, not included

FINISHES

  C28 ALUMINUM

Other finishes available
Approximate finish simulation, for reference only

TRIMS

NH900-3 Thumpiece pull
NH900-3
Thumb-latch pull,
Passage
NH900-4 Night Latch
NH900-4
Night latch pull
NH900-5 Entrance
NH900-5
Thumb-latch Pull,
Entrance

DOCUMENTATION

Product Page

downloadNH900 – 02.200

Instructions

downloadNH900 – Installation Instructions
downloadNH900-NHST11 – Installation Instructions

Instructions

downloadNH900 – Main Case Template
downloadNH900 – End Case Template

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
