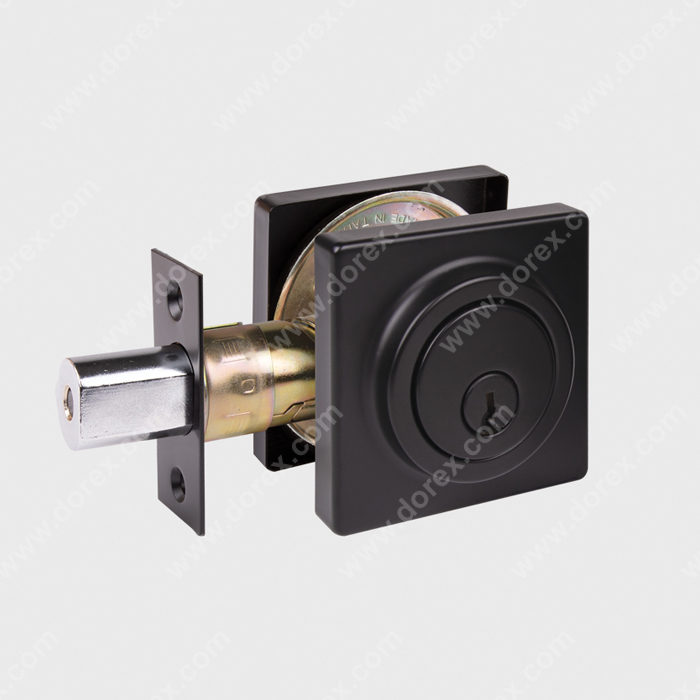

<strong>METRO SQUARE</strong>

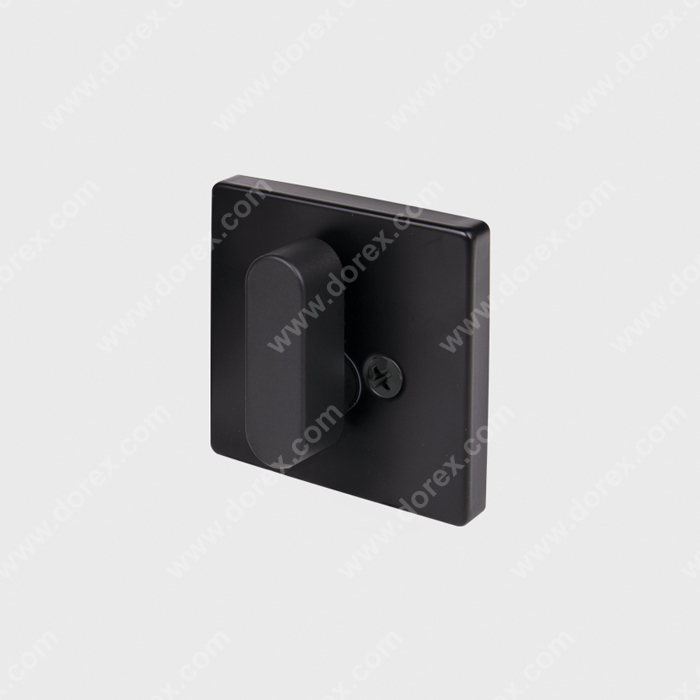

<strong>METRO SQUARE</strong> - Image 2

METRO SQUARE

Contemporary deadbolt lock styles for home and property security.

FEATURES

  • 20 Minute fire-rating model available
  • 1 year mechanical warranty
  • 1 year limited finish warranty
  • For doors 13⁄8 – 13⁄4″ (35 – 44.5 mm) thick
  • Extension kit fire 21⁄4” (57mm) thick doors available (#B1-EXT)
  • Fits standard 21⁄8” (54mm) door preparation with 1″ (25.4mm) edge bore
  • Steel 1″ (25.4 mm) deadbolt latch with hardened steel security pin and adjustable
    23⁄8″ – 23⁄4″ (60 or 70 mm) backset
  • Mortise faceplate with square corners, convertible to drive-in
  • 5-pin cylinder, Weiser keyway with 2 keys
  • Strike for wood door frames included
  • 5-pin Schlage cylinder available
  • Other faceplate options available

Note: Only the Schlage model (V12) is available fire-rated (FM).

FUNCTIONS

51Single cylinder with thumbturn keyed function

FINISHES

  15 SATIN NICKEL

 19 MATTE BLACK

  26D SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page
downloadMetro Collection – 01.240
downloadMetro (Deadbolts) – 01.248

Instructions

downloadMetro Series – Installation Instructions (Square)

Templates & Door Preparations

downloadMetro Series – Template

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
