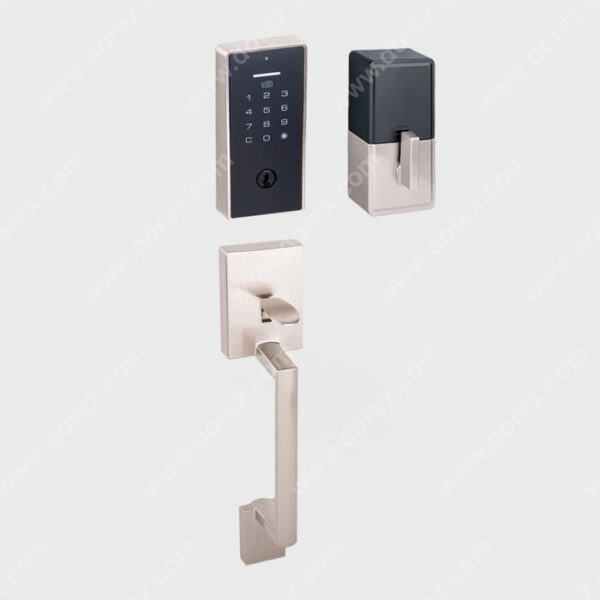

T300 COMBO

FEATURES

• 3-year mechanical warranty
• 5-year limited finish warranty
• 1-year limited electronic warranty

• Non-handed, zinc die-cast exterior trim.
• For doors 1³⁄₄″ – 2 ¹⁄₄″ (44.5 – 57 mm) thick.
• Fits standard 2 ¹⁄₈″ (54 mm) door preparation with 1″ (25.4 mm) edge bore.
• Steel tubular spring latch with adjustable 2 ³⁄₈″ – 2 ³⁄₄″ (60–70 mm) backset.
• Steel 1″ (25.4 mm) deadbolt latch with hardened steel security pin and adjustable 2 ³⁄₈″ – 2 ³⁄₄″ (60–70 mm) backset.
• Mortised faceplate with square corners, convertible to drive-in
• Galvanized steel interior mechanism
• Temperature: -20° to 60 °C (-4° to 140 °F)
• Weiser 5-pin brass cylinder in steel housing with 2 keys
• Full-lip strike and deadbolt security strike for wood door frames included

• Interior lever can be swapped with any other Tecnica Design lever*.

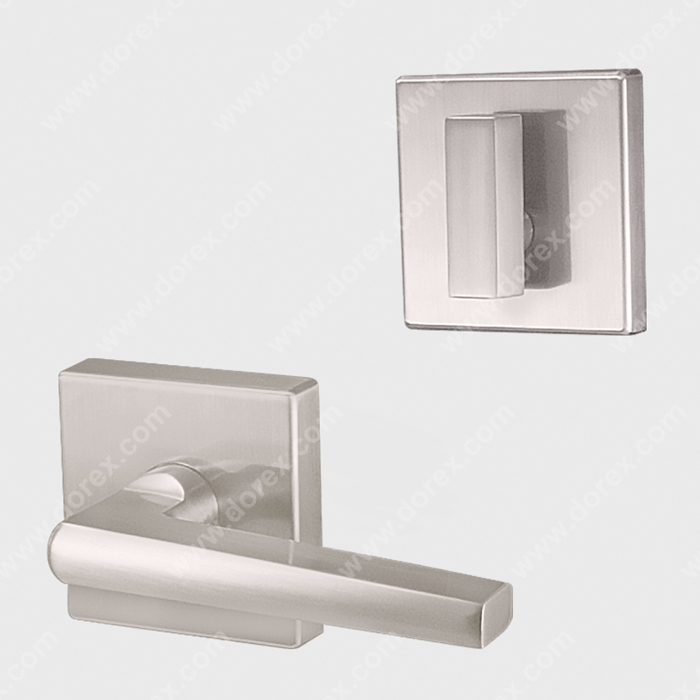

• Available with round or square interior trim.

(*) Availability may vary, please contact your local Dorex representative.

ELECTRONIC FEATURES

• Deadbolt operated by touchscreen keypad or key
• Can handle up to 70 user codes, and 5 renewable single-use codes
• Proximity sensor lights keypad when approached
• Anti-fingerprint surface prevents code guessing
• Touchscreen keypad stays lit for 30 seconds after activity
• Automatic locking for peace of mind
• Vacation mode deactivates the keypad while away
• Low battery indicator (audible and visible)
• Requires four (4) 1.5v AA batteries (not included)
