FEATURES
- Conforms to ANSI/BHMA A156.2, series 4000, Grade 1
- cULus listed, 3 hr fire rating
- ANSI/UL 10C Positive Pressure Rated
- 10 Year limited warranty
- For doors 13⁄8 to 2″ (35 to 51 mm) thick
- Non-handed
- 23⁄4″ (70 mm) backset
- 23⁄8″, 33⁄4″ and 5″ (60 mm, 95 mm and 127 mm) backsets available
- Stainless steel latch with 1⁄2″ (12.7 mm) throw
- Deadlatch with 3⁄4″ (19 mm) throw available
- Removable security posts
- 3″ (76 mm) rose diameter
- Concealed mounting plate and screws
- ASA strike

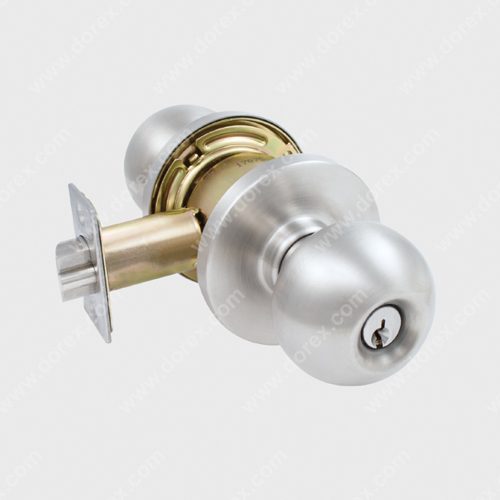

- Keyed functions include 6-pin cylinder, Schlage “C” keyway with 2 keys

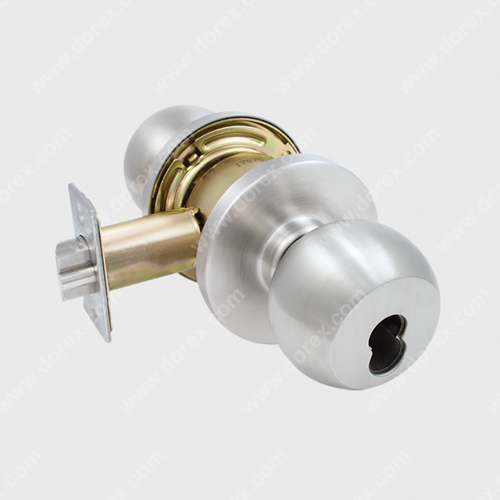

- Small format interchangeable core (SFIC) model available (SFIC sold separately)
Full keying services available. Other common and high security keyways available.
